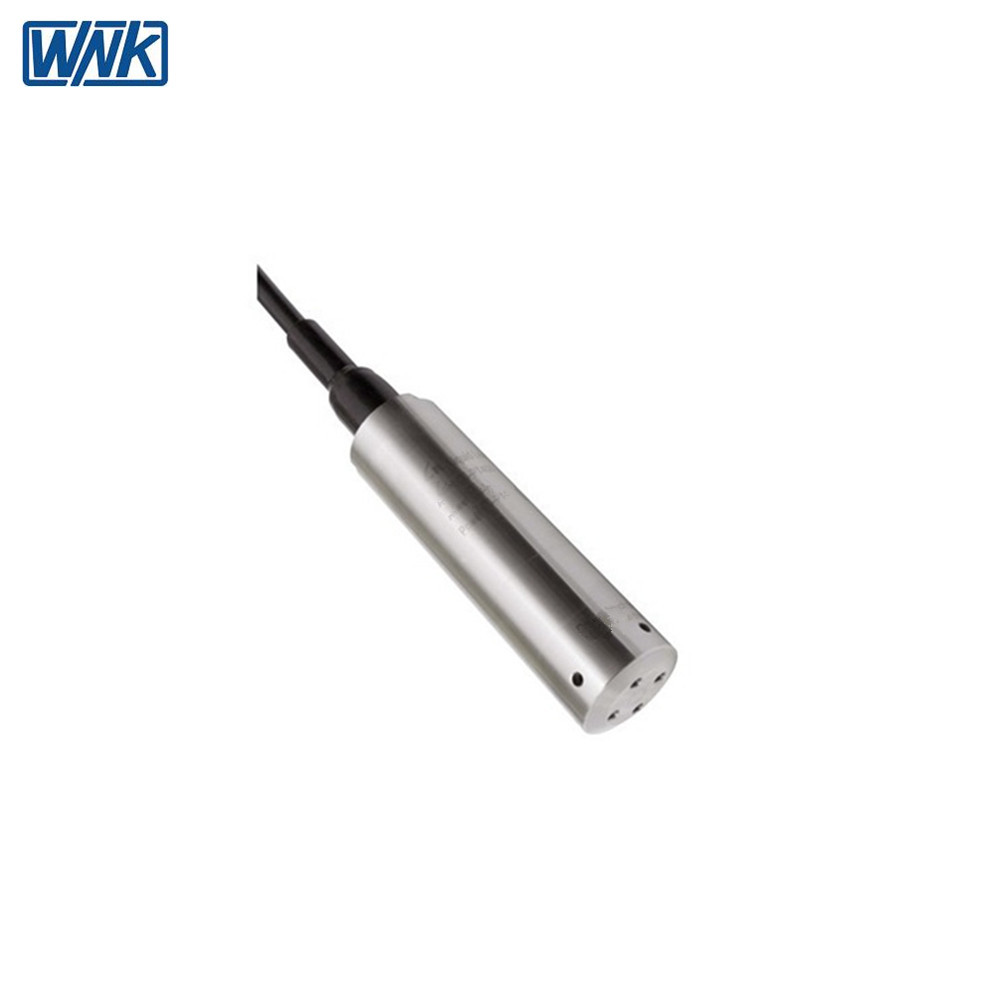

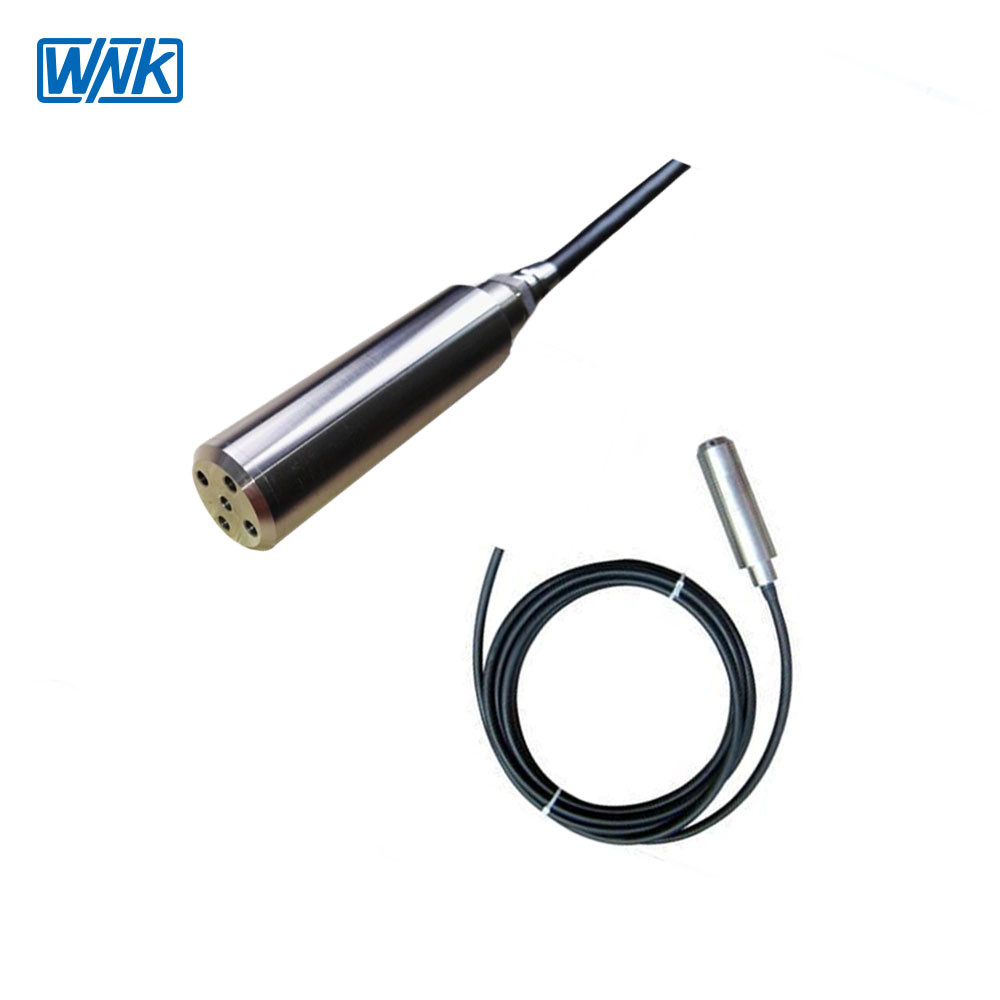

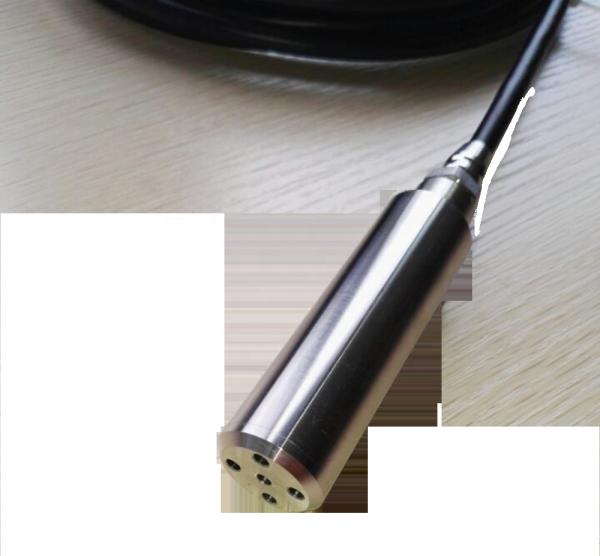

Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V

Brand Name : WNK

Model Number : WNK8010-TT

Certification : CE

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $35.00 - $50.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 3000 Set/Sets per Week water level transmitter

Delivery Time : 5-8 work days

Packaging Details : Each set into one individual carton, packed with foam protection;

Grade : DIY, Industrial

Warranty : 1 YEAR

Customized support : OEM, ODM

Measuring Range : 0...1~200 meters

Accuracy : 0.25%FS, 0.5%FS,

Analog Output : 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Application Field : Wells, Water Tank, Liquid, Sea water

Ingress Protection : IP68

Power Supply : 12~30V DC

Digital Output : RS485, IIC, I2C

Cable Material : PF, PTFE (anti-corrosive)

Housing : 304SS, 316L

Type : Water Level Transmitter

Port : Shanghai, Ningbo, Shenzhen, Guangzhou

Contact Now

4-20mA 0.5-4.5V Submersible Liquid Level Transmitter/Hydrostatic Water Level Sensor

wnk 4-20mA 0.5-4.5V Submersible Level Transmitter

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
